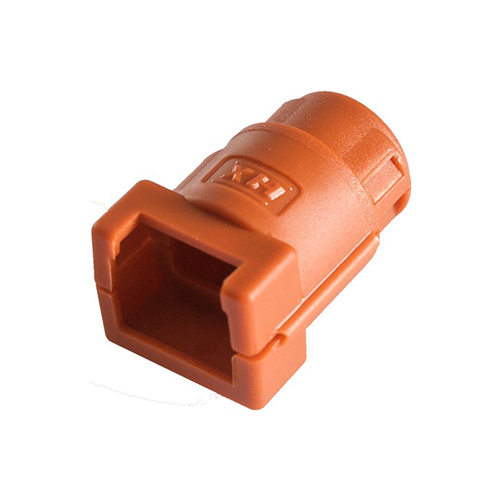

High temperature external hinged connector interfaces
Straight fittings providing high integrity connections between Deutsch DT connectors and Harnessflex conduit systems. Full TempGuard system protection is achieved using these fittings with HTC conduit.
Temperature Range
- Minimum -40ºC
- Permanent Max 160ºC
- Long term max (30,000 hrs) 185ºC
- Short term max (3,000 hrs) 200ºC
Features
- One-piece external design for unrestricted bore and quick assembly with no tools.
- High pull-off strength – conduit corrugations sit tightly into joiner junctions.
- Conduit size labels – each junction indicates nominal conduit size to aid installation
- High Temperature Polyamide (Nylon) – Low Smoke & Halogen Free
- IP40 rated
- High UV resistance
Conformity
- CE Mark to the low voltage directive
- RoHS Compliant to 2011/65/EU
- Conforms with end of life vehicle directive (ELV) EU200/53/EC
- UL94 V2 / UL94 RTI 150 (Elec)
